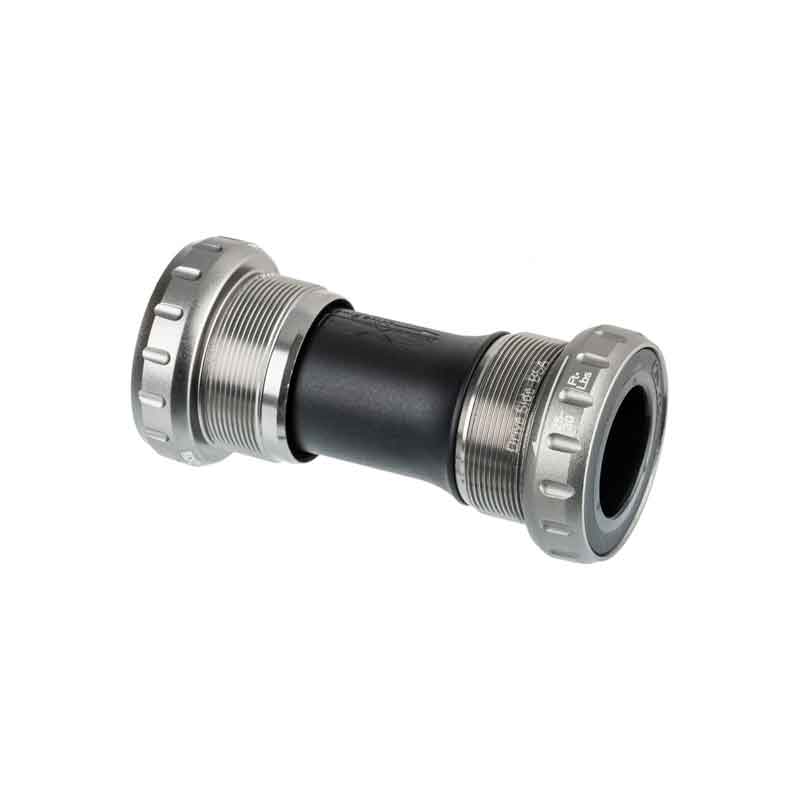

SRAM GXP Bottom Bracket

Solid bearing technology for your SRAM/Truvativ cranks: the GXP bottom bracket by SRAM Truvativ
GXP is different - and better. Other systems rely on side-loaded bearings to eliminate play, causing bearing wear. GXP captures the left-side bearing between the spindle and the left crankarm and allows the drive-side bearing to float axially on the spindle. There's no need to side-load bearings during adjustment. No excess wear. And a much simpler installation.

SPECIFICATIONS

Cup Material: aluminium, CNC machined
Bearings: cartridge, sealed
Threads: BSA or ITA
Shell Width: 68/73 / 70 / 83 or 100 mm
Other: anodized

Models:
BSA:
- Threads: BSA
- Shell Width: 68/73mm
- Finish: Team (Wolfram grey)
- Manufacturer Part Number: 00.6415.045.000

ITA:
- Threads: ITA
- Shell Width: 70mm
- Finish: Team (Wolfram grey)
- Manufacturer Part Number: 00.6415.001.000

BSA 83:
- Threads: BSA
- Shell Width: 83mm
- Finish: Team (Wolfram grey)
- Manufacturer Part Number: 00.6415.045.060

BSA 100:
- Threads: BSA
- Shell Width: 100mm
- Finish: XR (black)
- Manufacturer Part Number: 00.6415.045.070

Note: when using the GXP Team bottom bracket with road cranks, due to technical issues, a spacer cannot be used! Spacers are only included with the BSA version. The ITA version does not include a spacer.

Contents:
- 1 x SRAM Truvativ GXP bearing cup (Team or XR) left, incl. bearings
- 1 x SRAM Truvativ GXP bearing cup (Team or XR) right, incl. bearings
- 1 x SRAM Truvativ GXP center tube
- incl. spacer (only the BSA version)

FAQ

What is DUB?
DUB is a 28.99mm crank axle standard from SRAM. There different DUB BBs to fit most frame interfaces.

Will this fit my bike?
This BB will fit any bike with a BSA73 or BSA68 threaded bottom bracket shell. Check your frame specs if you are unsure what BB system your frame uses.

Will my cranks fit this BB?
Any DUB cranks will fit this BB. Note that GXP/30mm/24mm will not fit this BB, so even if this BB fits your frame it is important to make sure this is the correct BB for your cranks.
