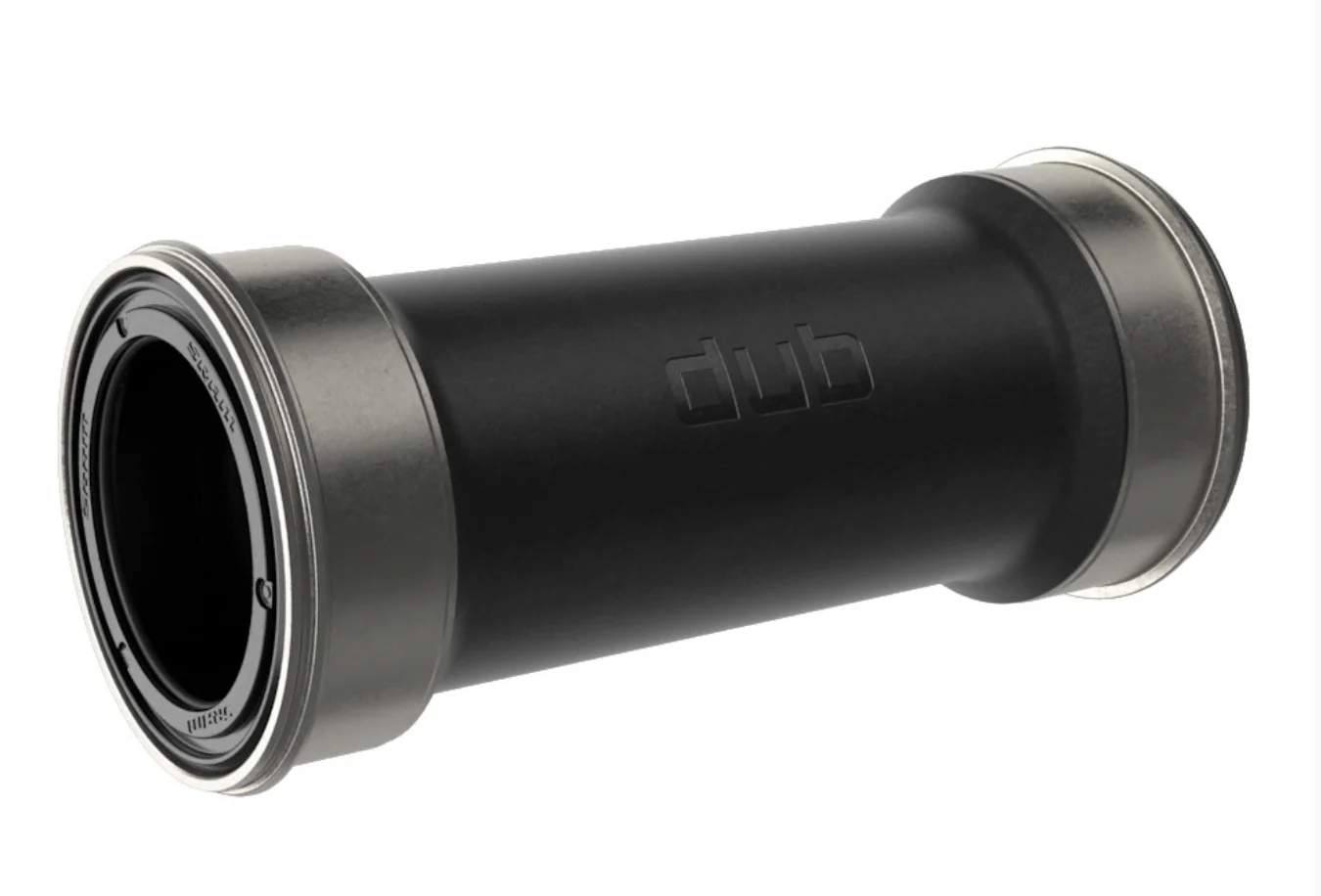

SRAM DUB Pressfit MTB 41 x 89/92 mm Bottom Bracket

The new SRAM DUB bottom bracket series has a simple job-connect your crankarms and protect the smooth, long-lasting application of power to your drivetrain. To allow that singular focus, we've engineered the DUB spindle to be the one true unifying component. One oversized spindle to work across every bottom bracket standard. For better crankarm compatibility. For better protection from the elements. For longer-lasting performance. To be stronger, smoother, simpler. Now, back to the ride.

SPECIFICATIONS

Application: MTB
Series: DUB
Type: Pressfit BB92
Shell Diameter: 41 mm
Shell Width: 89.5-92 mm
Axle Diameter: 28.99 mm

Technical Information:
Bottom Bracket Cup Material: steel

Manufacturer Part Number:
00.6418.016.000

Note: to mount this bottom bracket a PRO tool can be used.

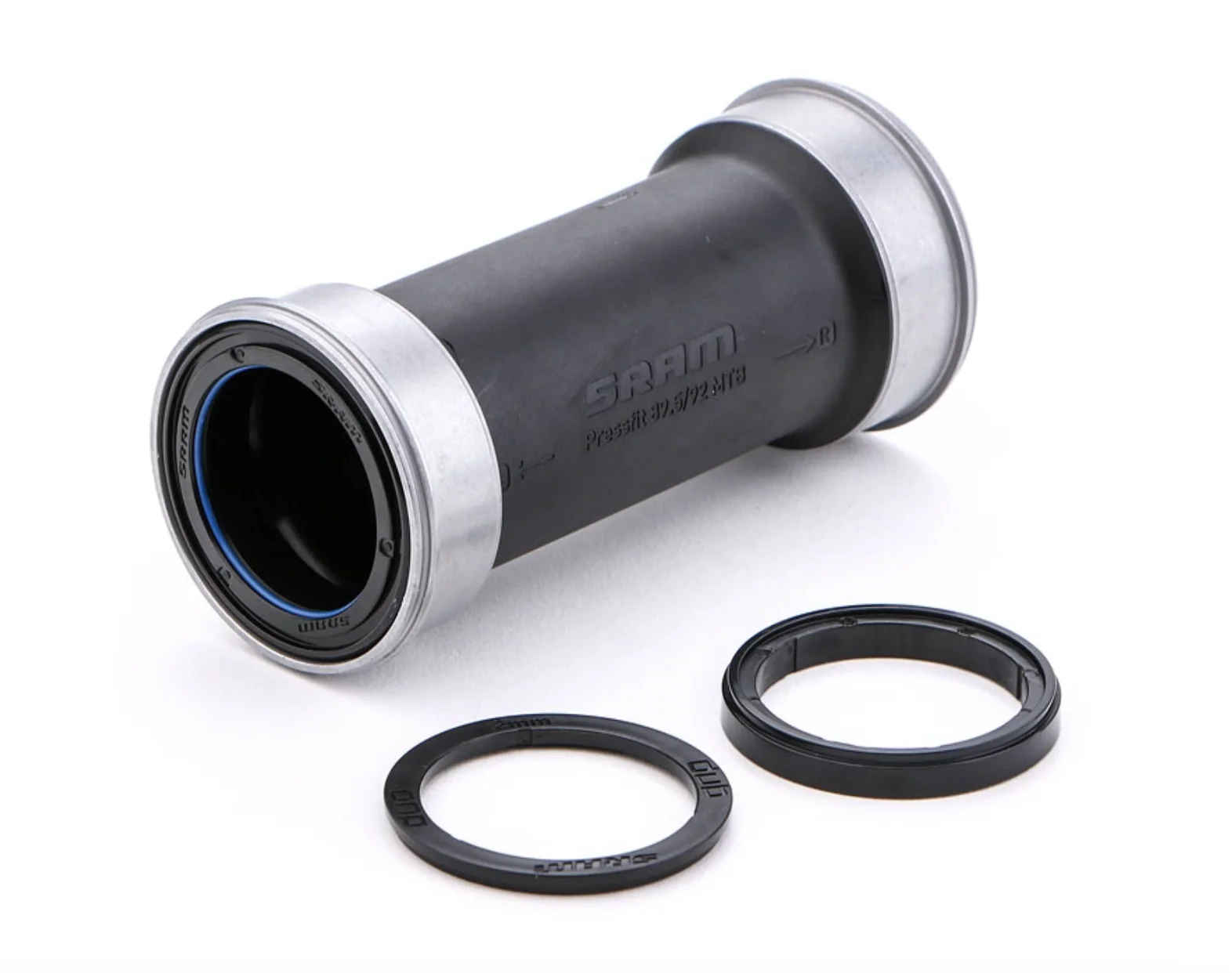

Contents:
- 1 x SRAM DUB Pressfit MTB bottom bracket
- 1 x outer spacer (r) 4.5 mm (for 89.5 mm)
- 1 x outer spacer (r) 2 mm (for 92 mm)

FAQ

What is DUB?
DUB is a 28.99mm crank axle standard from SRAM. There different DUB BBs to fit most frame interfaces.

Will this fit my bike?
This BB will fit any bike with a PF89 or PF92 bottom bracket shell. Check your frame specs if you are unsure what BB system your frame uses.

Will my cranks fit this BB?
Any DUB cranks will fit this BB. Note that GXP/30mm/24mm will not fit this BB, so even if this BB fits your frame it is important to make sure this is the correct BB for your cranks.
