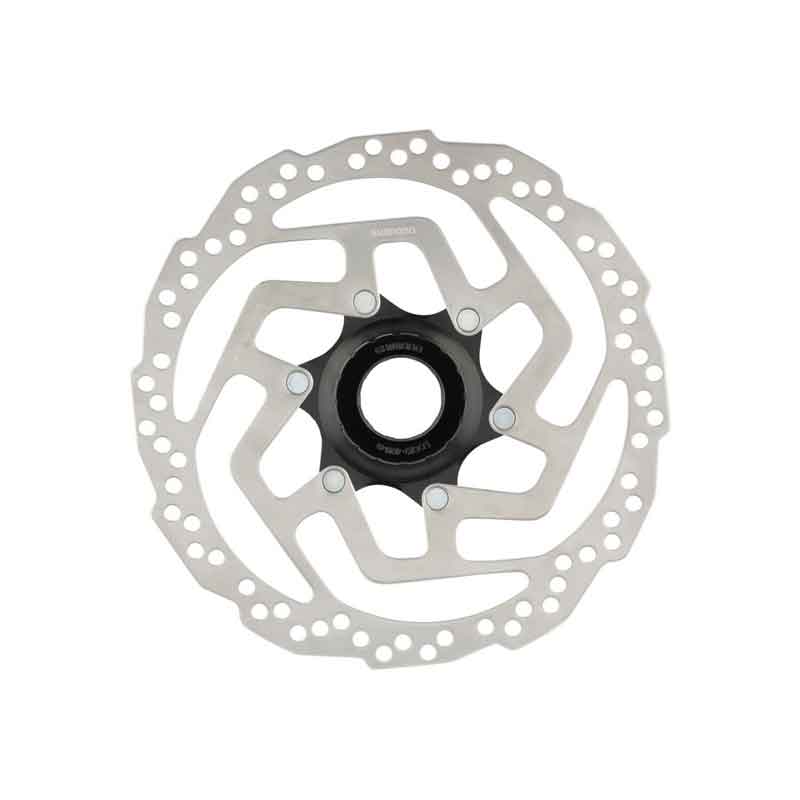

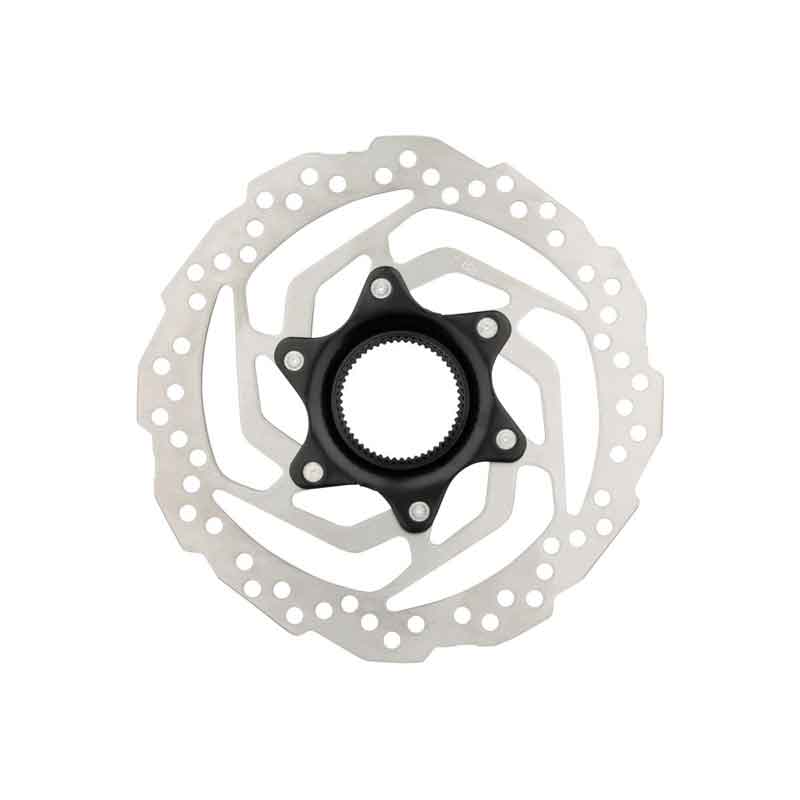

Shimano SM-RT10 Center Lock Brake Rotor

Shimano SM-RT10 Center Lock Brake Rotor - Enhanced Lockring Design
The Shimano SM-RT10 Center Lock brake rotor features an updated black lockring with an innovative design that includes both internal and external toothing for secure installation. This rotor is specifically designed for use with organic brake pads, ensuring optimal braking performance. A reliable upgrade for cyclists seeking smooth and controlled stopping power.

SPECIFICATIONS

Mount: Center Lock
Diameter: 160 mm, 180 mm
Design: 2-piece
Rotor Material: stainless steel
Spider Material: steel
Lockring Material: steel

Approved For:
Brake Compatibility: BR-M9100, BR-M9120, BR-M9000, BR-M9020, BR-M8100, BR-M8120, BR-M8000, BR-M8020, BR-M7100, BR-M7120, BR-M7000, BR-M6000, BR-MT520, BR-MT420, BR-M820, BR-M640, BR-S7000, BR-S700, BR-T675, BR-T615, BR-M4050, BR-MT500, BR-M446, BR-MT400, BR-M3050, BR-M395, BR-M375, BR-MT200, BR-M365, BR-M315, BR-TX805, BR-UR300*, BR-R9170*, BR-R8070*, BR-R7070*, BR-RS805*, BR-R785*, BR-RS785*, BR-RS505*, BR-RS405*, BR-RX810*, BR-RX400*
Brake Pad Compatibility: organic

*only 160 mm

Features:
- performance indicator: select (level 1 out of 3)
- painted spider, polished rotor, painted lockring (internal and external toothing)
- for brake pads with wide pad shape

Manufacturer Part Numbers:
160 mm: E-SMRT10S2
180 mm: E-SMRT10M2

Contents:
- 1 x Shimano SM-RT10 brake rotor
- 1 x lockring (black)

Weight: 211g

FAQ

What type of mount system do I require to install the Shimano rotor on my wheel?
The Shimano rotor uses CENTER LOCK that fixes by spline and secures with lock ring for enhanced precision and rigidity.

How tight should the lock ring be on the CENTERLOCK system?
Refer to the lock ring for torque specification.

What advantage is there to Shimano CENTERLOCK over 6-Bolt?
Shimano CENTERLOCK features quick assemble with enhanced precision and rigidity.
