Zipp 3ZERO MOTO Disc 6-bolt Boost 29" Carbon Wheelset Shimano HG

DESCRIPTION

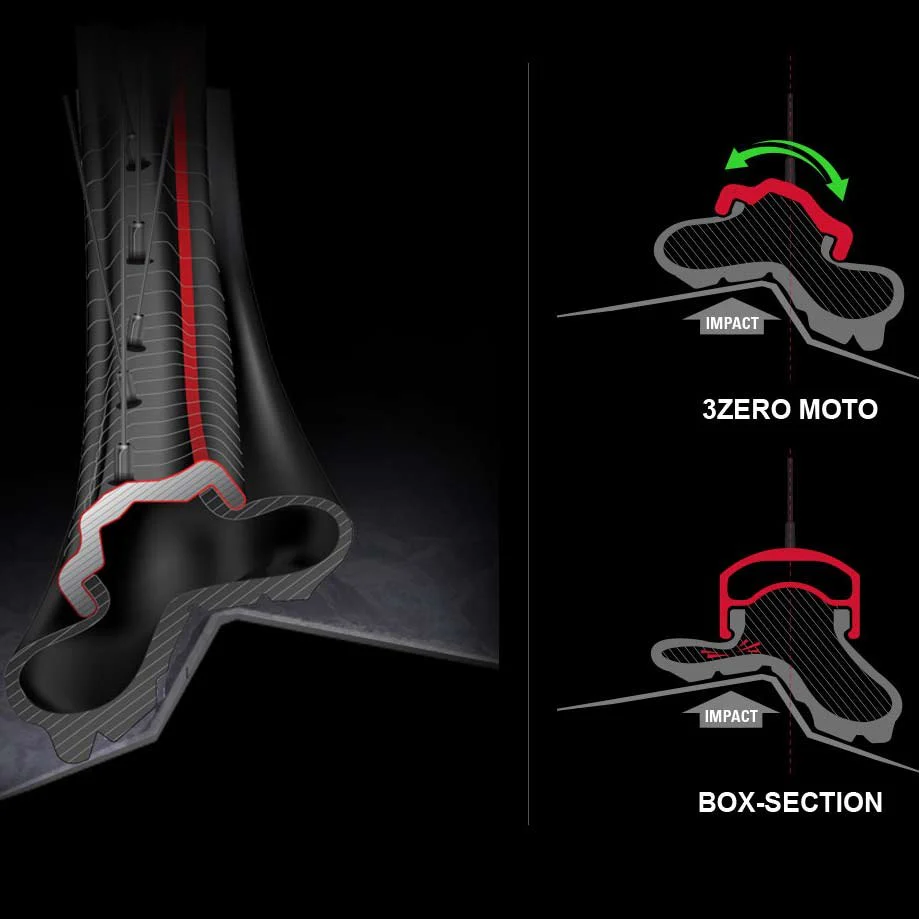

Zipp's 3ZERO MOTTO carbon wheelset is inspired by moto to provide control and durability for pure speed. The one-wall construction approach allows the rim to "pivot" from either side of the spoke bed while traversing rough terrain. As the wheel encounters obstacles, each edge of the rim is designed for compliance, creating the feel of extra suspension.



SPECIFICATIONS

Application: Enduro, Trail
Wheel Size: 29"
Tyre Type: clincher
Number of Spokes: 32
Brake Type: 6-bolt disc
Wheel Standard: Boost
Tubeless System: Tubeless Ready

Technical Information - Rim:
Type: UniStitch Carbon Weave, asymmetrical
Dimensions (ETRTO): 30-622
Inner Width: 30 mm
Outer Width: 37.5 mm
Valve Hole Diameter: Presta (6.5 mm)
Rim Material: carbon

Technical Information - Front Hub:
Type: ZM1
Over Locknut Dimension: 15 x 110 mm thru-axle
Bearings: cartridge, stainless steel
Body Material: aluminium

Technical Information - Rear Hub:
Type: ZM1
Over Locknut Dimension: 12 x 148 mm thru-axle
Bearings: cartridge, stainless steel
Body Material: aluminium
Freehub Body Material: aluminium
Freehub Body: Double Time, 4 pawls, 52 points, 6.9°

Technical Information - Lacing:
Front Lacing Pattern: 3-cross
Rear Lacing Pattern: 3-cross
Spoke Type: Sapim D-Light / J-bend
Spoke Length: 302 mm/300 mm (front l/r), 302 mm/300 mm (rear l/r)
Spoke Material: stainless steel
Nipple Type: Sapim secure lock, external
Nipple Material: aluminium

Approved For:
Weight Limit: 113 kg total weight*
Air Pressure (max.): 4.48 bar

Colour Index:
The first colour refers to the Zipp logo (silver or slate), the second refers to the graphics (blue, rs red, orange, yellow, silver, stealth). The base colour of the rim is black (carbon), the hubs are black-grey, the spokes and nipples are black.

Models:
29" set (front 15x110 Boost + rear 12x148 Boost) Shimano:
- Freehub: Shimano MTB
- Gearing: 8-/9-/10-/11-speed
Manufacturer Part Number: silver-silver: 00.1918.422.000 + 00.1918.423.006

Manufacturer's Guarantee:
Zipp offers a lifelong guarantee on the 3ZERO MOTO wheels in regards to material and design failures as rim defects when properly used. More information about the guarantee is provided by the manufacturer.

Contents:
- 1 x Zipp 3ZERO MOTO wheelset (front & rear)
- 2 x QUARQ TyreWiz tyre pressure sensors for MOTO w/ batteries
- 2 x tubeless valves (pre-installed)
- 2 x tubeless rim tape (pre-installed)
- 2 x 21 mm standard torque caps for front
- 2 x 31 mm RockShox torque caps for front



FAQ

What is the maximum recommended wider weight for the Zipp 3ZERO MOTO Disc 6-bolt Boost 29"" Carbon Wheelset?
The Zipp 3ZERO MOTO Disc 6-bolt Boost 29"" Carbon Wheelset has a maximum rider weight of 125Kg.

What is the rim profile the Zipp 3ZERO MOTO Disc 6-bolt Boost 29" Carbon Wheelset?
The Zipp 3ZERO MOTO Disc 6-bolt Boost 29"" Carbon Wheelset has Moto Technology, Asymmetrical, Tubeless Compatible profile.

What is unique about the Zipp 3ZERO MOTO Disc 6-bolt Boost 29"" Carbon Wheelset?
The Zipp 3ZERO MOTO Disc 6-bolt Boost 29"" Carbon Wheelset single-wall approach, what we call Moto Technology™, allows the rims to “pivot” from either side of the spoke bed while traversing rough terrain.
