Surface Elite 80 Carbon Tubeless Wheelset

Surface Elite 80 Carbon Tubeless Wheelset

DESCRIPTION
  • The Surface Elite 80 wheelset is the perfect aftermarket set for your Road, Time Trial (TT) or Tri bike.

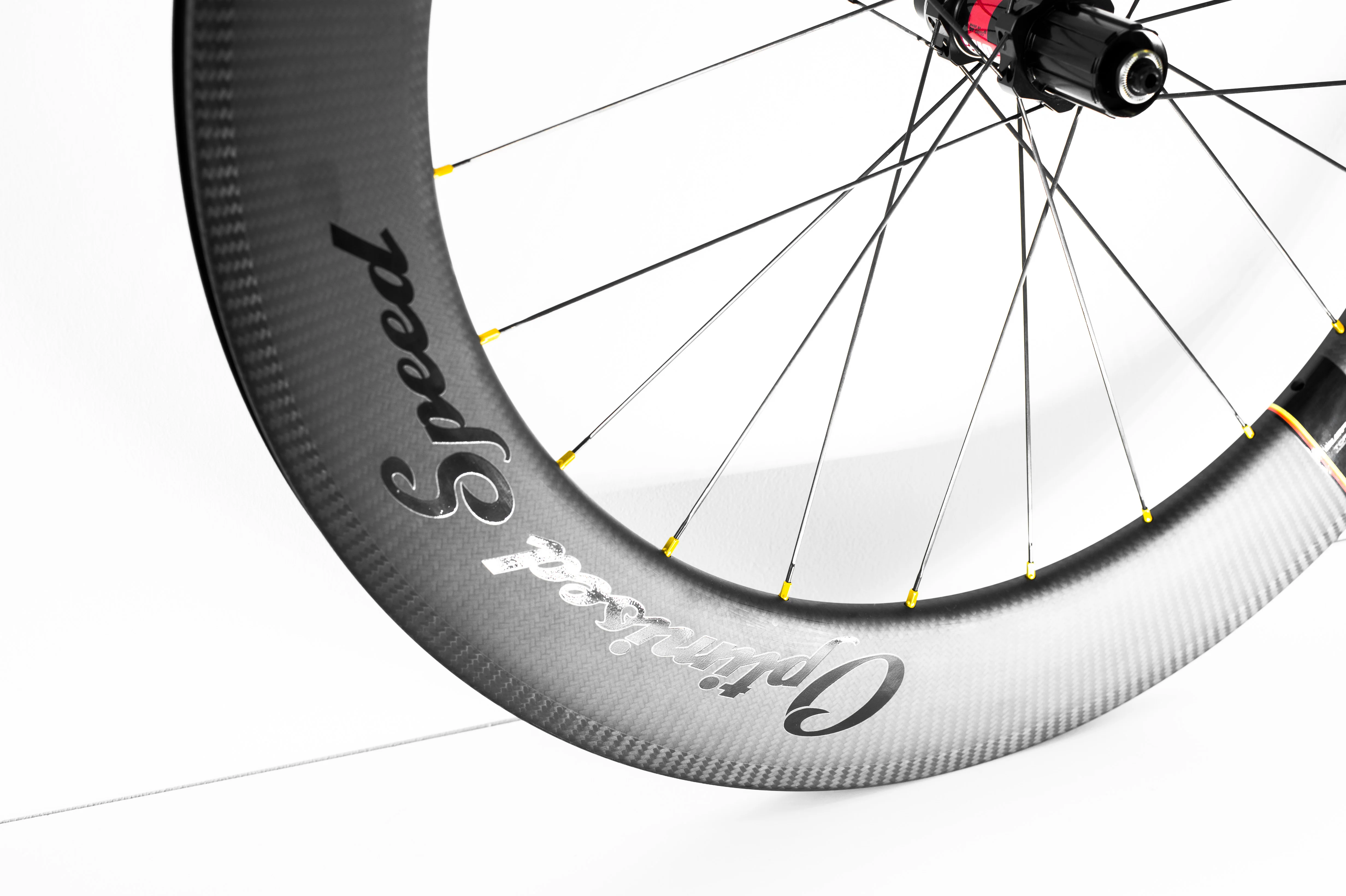

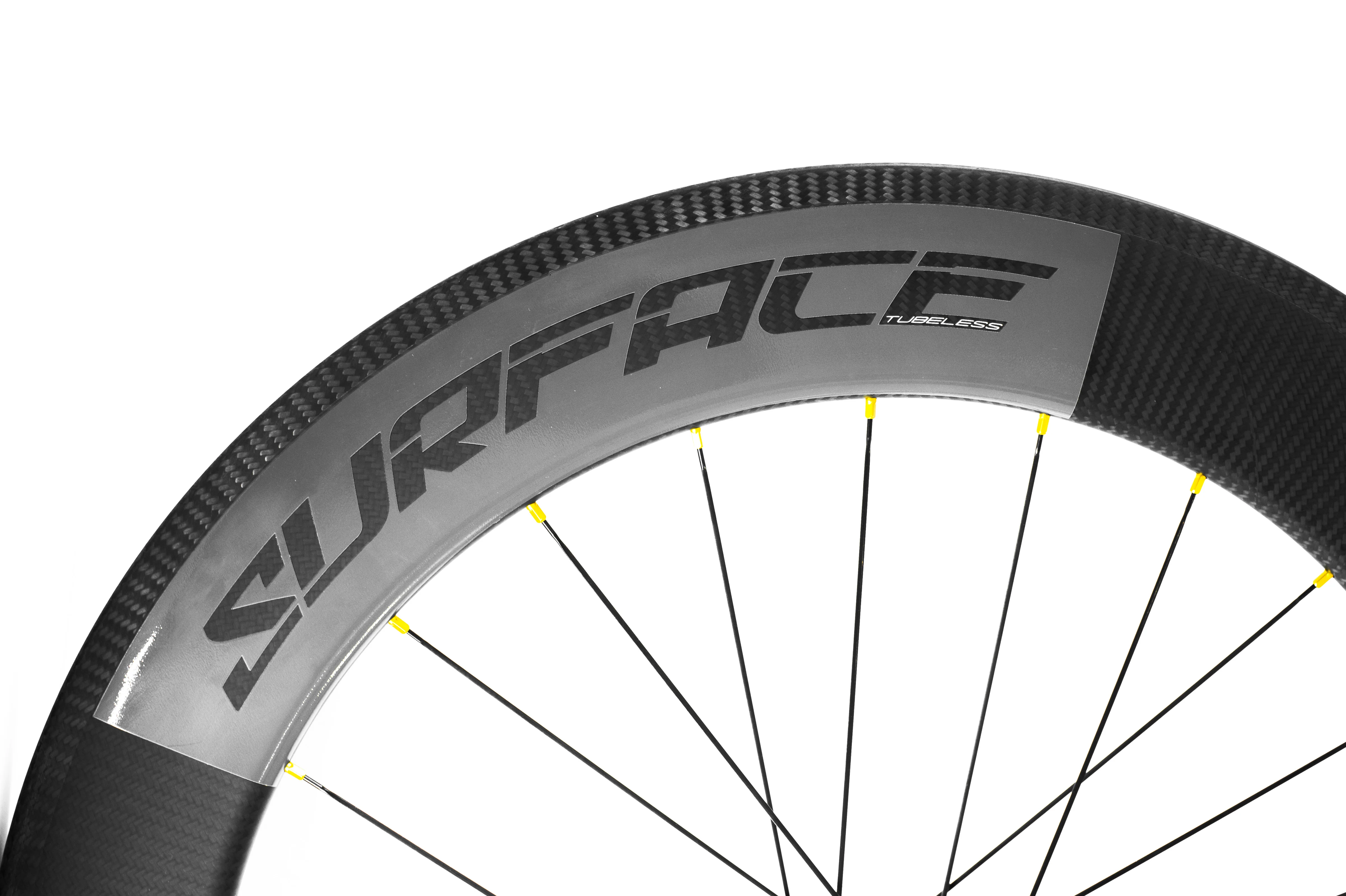

  • Lightweight, deep dish wheelset, the Surface Elite 80 is made from 3K Twill weave Toray carbon Fiber, delivering an impact resistant, stress dissipating wheel that is very stiff.
  • More than just performance upgrades, the Elite 80 adds heaps of style to your bike.
  • Tubeless ready.

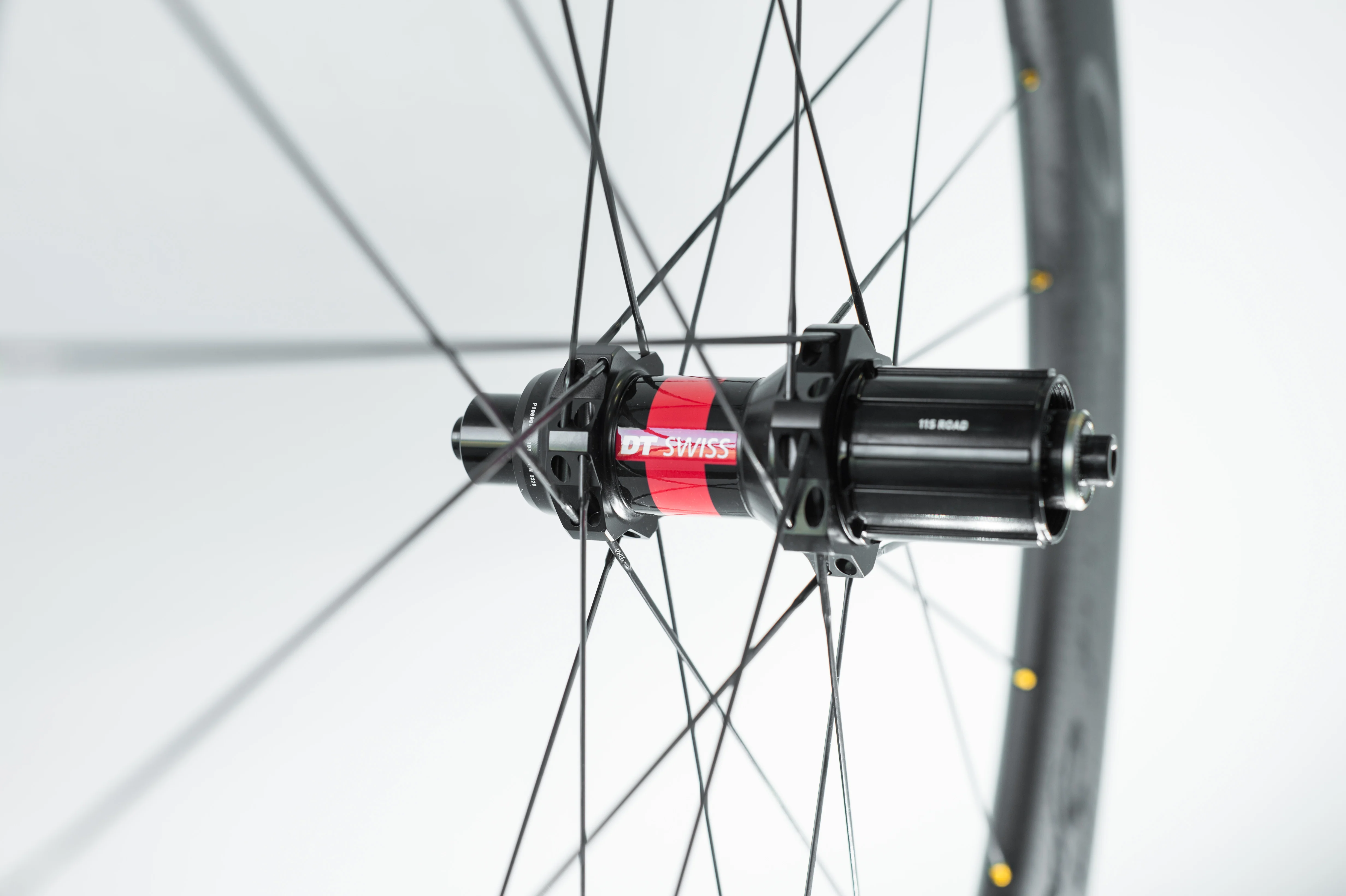

  • The Surface Elite 80 wheelset features straight pull DTSwiss 240 hubs, 100mm OLD 9mm QR front and 130mm OLD, 9mm QR rear.
SPECIFICATIONS
Stiffness optimised rim profile stress disipating structural ply layup impact resistant surface ply layup
Size 700C
ID 17mm
OD 26mm
Depth 80mm
622mm ETRTO
20H F / 24H R
Rim material Toray carbon, 3k twill weave
Rim Type Symmetrical
Internal width 17.0mm
External width 26.0mm
Depth 80.0mm
Hole count Front: 20h
Rear: 24h
Tubeless Yes
E-Bike No
Valve Presta
Tape N/A
Wheel Weight Front: 830g
Rear: 955g
Wheelset Weight 1785g
ETRTO 622
Spoke Pattern Front Front: 0-cross straight pull
Rear: 2-cross straight pull

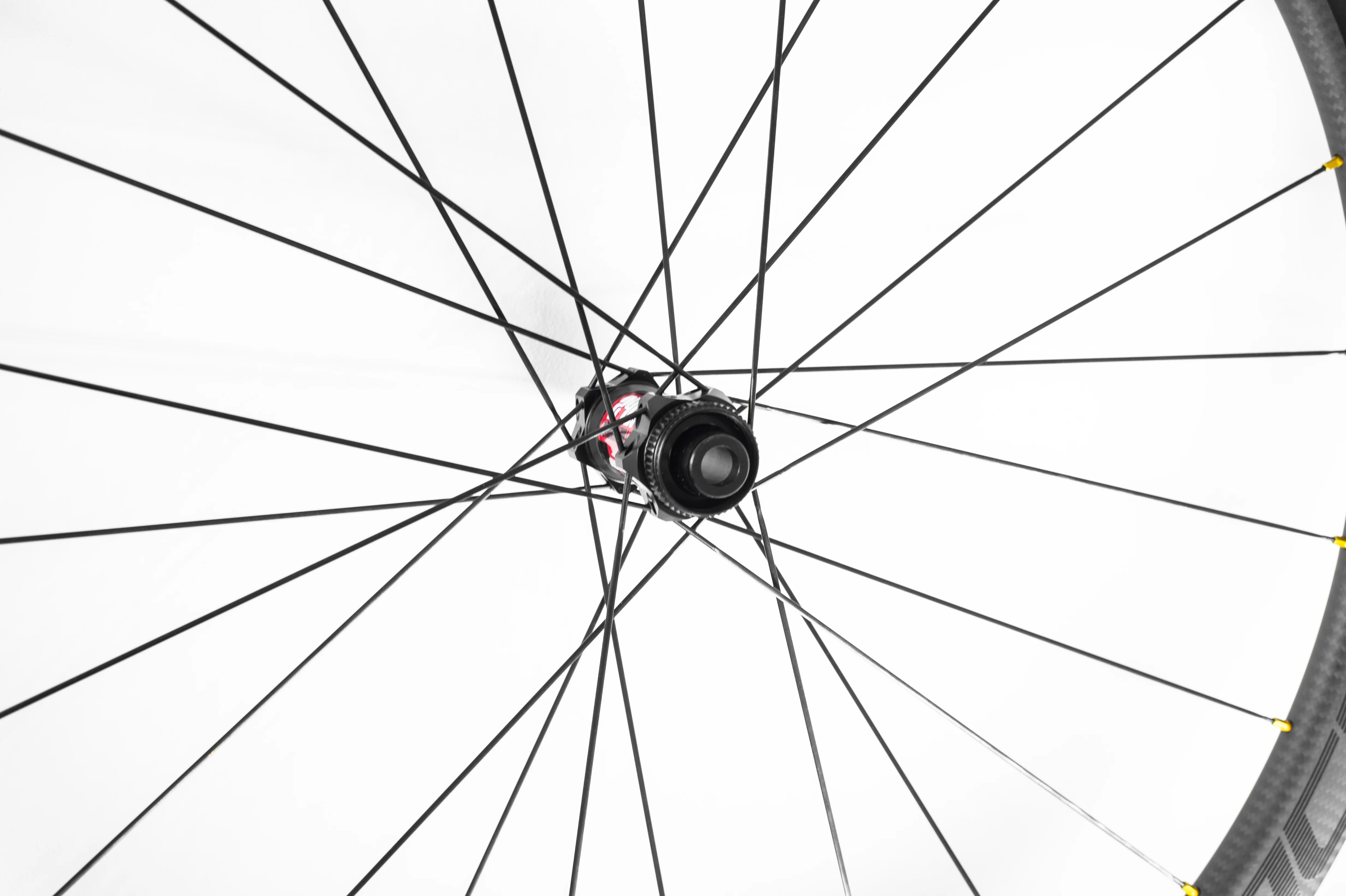

Hub Front: dt swiss, 240s, 100mm old, 9mm qr
Rear: dt swiss, 240s, 130mm old, 9mm qr
Brake Type Rim brake, carbon surface
Freehub DTSwiss 11spd Road
Recommended Tyre Front: 700cx25c
Rear: 700cx25c


FAQ

What tyre width is recommended for this wheelset?
23c - 30c"

Can I use these wheels on a thru axle frame?
Yes but you will need to purchase thru axle end caps separately.

Can I use disc brakes on these wheels?
No, the hubs do not support disc brakes.

What are the freehub options?
The wheels are supplied with a Shimano HG freehub but other freehubs can be bought separately

    $835.76
    Surface Elite 80 Carbon Tubeless Wheelset—
    $835.76

    Product Information

    Shipping & Returns

    Description

    DESCRIPTION
    • The Surface Elite 80 wheelset is the perfect aftermarket set for your Road, Time Trial (TT) or Tri bike.
    • Lightweight, deep dish wheelset, the Surface Elite 80 is made from 3K Twill weave Toray carbon Fiber, delivering an impact resistant, stress dissipating wheel that is very stiff.
    • More than just performance upgrades, the Elite 80 adds heaps of style to your bike.
    • Tubeless ready.
    • The Surface Elite 80 wheelset features straight pull DTSwiss 240 hubs, 100mm OLD 9mm QR front and 130mm OLD, 9mm QR rear.
    SPECIFICATIONS
    Stiffness optimised rim profile stress disipating structural ply layup impact resistant surface ply layup
    Size 700C
    ID 17mm
    OD 26mm
    Depth 80mm
    622mm ETRTO
    20H F / 24H R
    Rim material Toray carbon, 3k twill weave
    Rim Type Symmetrical
    Internal width 17.0mm
    External width 26.0mm
    Depth 80.0mm
    Hole count Front: 20h
    Rear: 24h
    Tubeless Yes
    E-Bike No
    Valve Presta
    Tape N/A
    Wheel Weight Front: 830g
    Rear: 955g
    Wheelset Weight 1785g
    ETRTO 622
    Spoke Pattern Front Front: 0-cross straight pull
    Rear: 2-cross straight pull
    Hub Front: dt swiss, 240s, 100mm old, 9mm qr
    Rear: dt swiss, 240s, 130mm old, 9mm qr
    Brake Type Rim brake, carbon surface
    Freehub DTSwiss 11spd Road
    Recommended Tyre Front: 700cx25c
    Rear: 700cx25c


    FAQ

    What tyre width is recommended for this wheelset?
    23c - 30c"

    Can I use these wheels on a thru axle frame?
    Yes but you will need to purchase thru axle end caps separately.

    Can I use disc brakes on these wheels?
    No, the hubs do not support disc brakes.

    What are the freehub options?
    The wheels are supplied with a Shimano HG freehub but other freehubs can be bought separately
