Fox 36 A Float 29" P-S E-Optimized 150mm Grip 3Pos 15QRx110mm 1.5" T 58HT 44mm
Fox Racing 36 A Float 29" Performance E-Optimized Fork - 3Pos Grip Tapered Boost

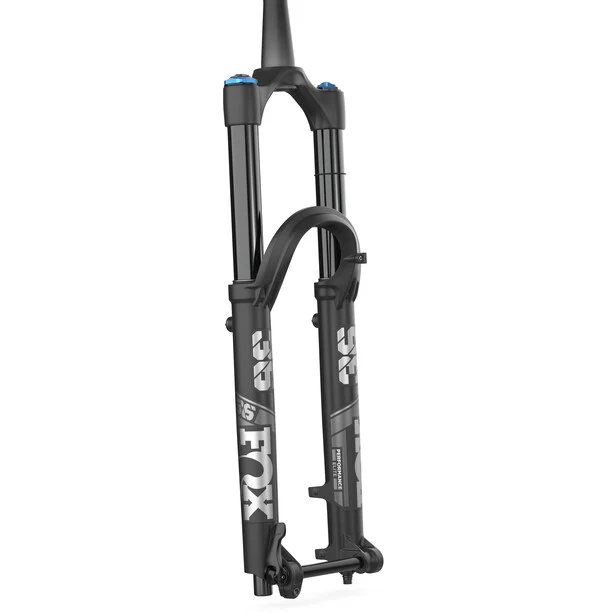

The Fox 36 A Float 29" Performance E-Optimized Boost with 3Pos Grip damper is a lightweight fork offering 150mm of travel, specifically designed for All-Mountain and Enduro E-MTB riders.
The Undisputed All-Mountain Champion
Tailored for aggressive trail riders, the Performance Speed-Pedelec Series 36 features a GRIP damper, FLOAT air spring, and a robust chassis, delivering proven trail performance that enhances confidence and control. This Speed-Pedelec fork is built to withstand the rigors of E-BIKES, with added material in critical areas for improved durability.

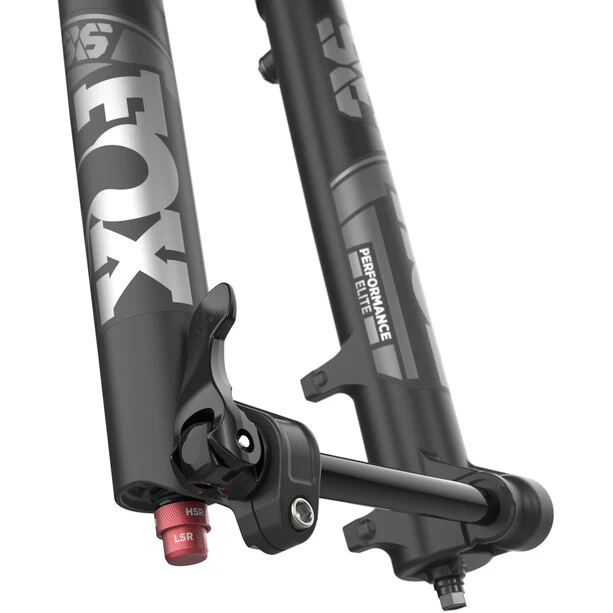

The all-new 36 and 38 models come equipped with a patent-pending quick-release lever-operated floating axle system, merging the advantages of a floating axle with tool-free quick-release convenience. This system ensures perfect fork alignment during repeated front wheel removal and reinstallation, with factory-preset floating sleeve positioning for hassle-free installation.
Modern frame designs and geometry trends demand advanced suspension solutions. The arch design of the 36, 38, and 40 forks is engineered to seamlessly pair with contemporary Enduro and Downhill bikes. As head tube profiles become larger and fork offsets shorter, our innovative arch shape extends forward to provide ample headtube clearance at full compression. Utilizing state-of-the-art computer modeling, we’ve crafted an organic lower leg shape that optimizes stiffness while minimizing material use.
Features - Fox Racing 36 A Float 29" Performance E-Optimized 150 3Pos Grip Tapered Boost
- Model - 2022 Performance Series 36 FLOAT GRIP 3POS
- FLOAT EVOL air spring adds plushness
- GRIP three position damper for improved control
- Completely redesigned immersion tube unit, optimum stiffness/weight
- Air and oil channels in the immersion tube unit
- New fork bridge design for more space in the head tube area; big advantage for shorter offsets
- Adjusted fork crown diameter for optically even transition between voluminous steering tubes and fork crown
- 4-point direct mounting bracket for mudguards
- Lockout for increased efficiency
- Boost 110 Thru Axle
- E-Bike optimized
Product features
- Use: E-MTB All-Mountain, Enduro
- Travel: 150mm
- Wheel size: 29"
- Spring: Air
- Damping: GRIP 3-Position Lever
-
Adjustments: Rebound, spring hardness over air pressure, GRIP 3-position compression (Open/Medium/Firm)
- Rebound: Lowspeed 10 clicks
- Additional micro-adjust between settings Detents
- Steerer: Tapered 1.5" to 1 1/8"
- Steerer length: 264mm
- Upper Tubes: 36mm
- Disc brake mount: Post Mount (direct mount 180mm)
- Maximum Rotor Size: 230mm
- Drop out: 15x110mm Boost Thru Axle quick release lever
- Max. tire dimension: 29 x 2.6"
- Axle to Crown: 567.1mm
Travel / Offset
- 150mm / 44 Offset / Boost
Material
- Steerer: Aluminum
- Crown: Aluminum
- Lowers: Magnesium
- Upper Tubes: Aluminum (Black Ano)
Color
- Matte black
Scope of delivery
- 1 Fox Racing 36 A Float 29" Performance E-Optimized 150 3Pos Grip Tapered Boost
- 1 Fox Racing Boost Thru Axle 15x110mm with QR Lever
- 1 Star Nut
