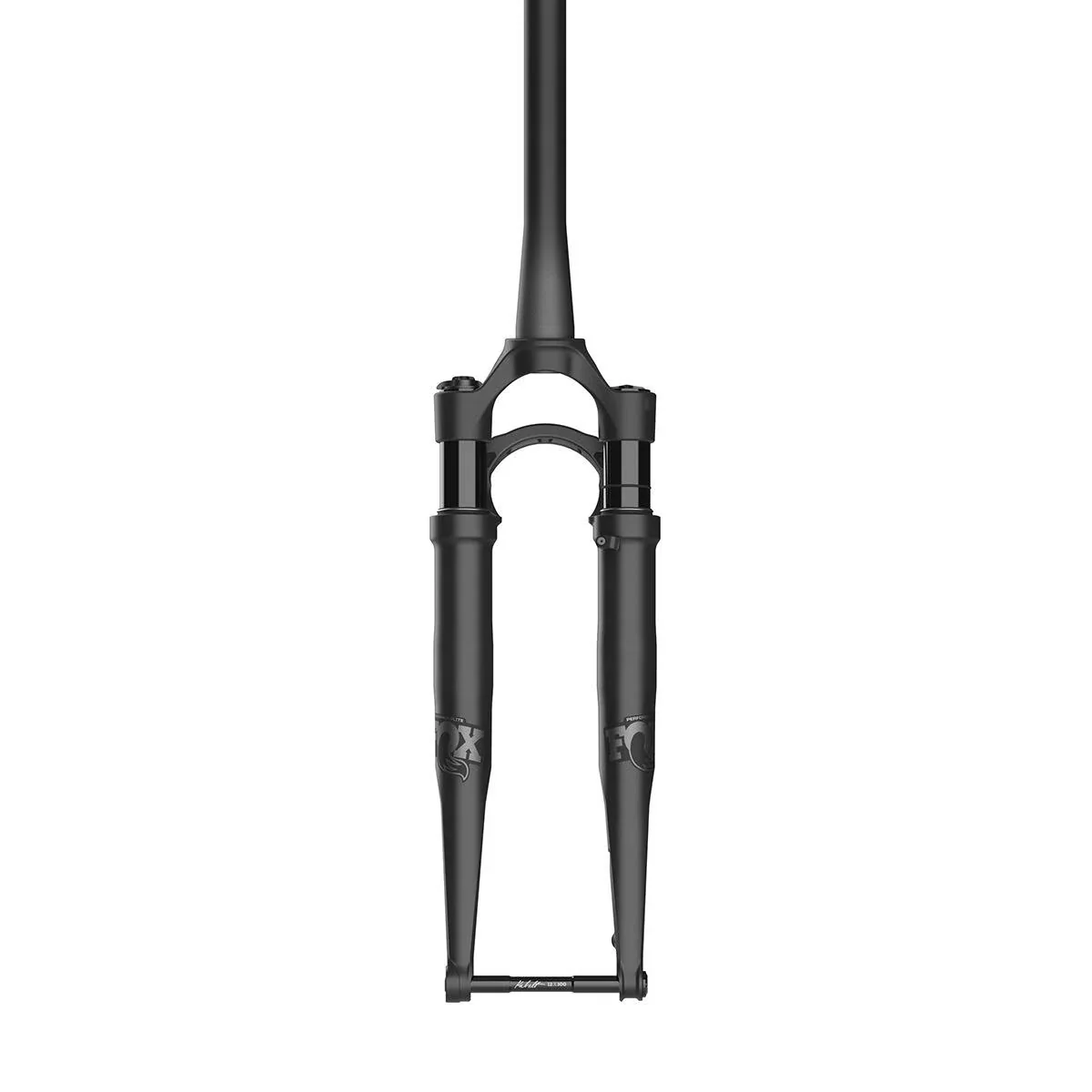

Fox 32 TC Taper-Cast Performance-Elite 2022 Float FIT4 Gravel fork
DESCRIPTION
FOX Suspension Fork 2022 28" 32 TC Performance Elite Float P-SE 40 Taper-Cast 3-Pos Adjust FIT4 Matte Black Kabolt 12x100 mm Tapered 45 mm Rake
The use of suspension forks on gravel bikes is expanding as routes become more demanding. The ultra-light Fox 32 Taper Cast, optimized for gravel, makes replacing rigid forks easier. Weighing just 1226 grams, it's the lightest suspension fork Fox has produced. Its slim taper-cast design reduces air resistance and complements modern gravel bike aesthetics.

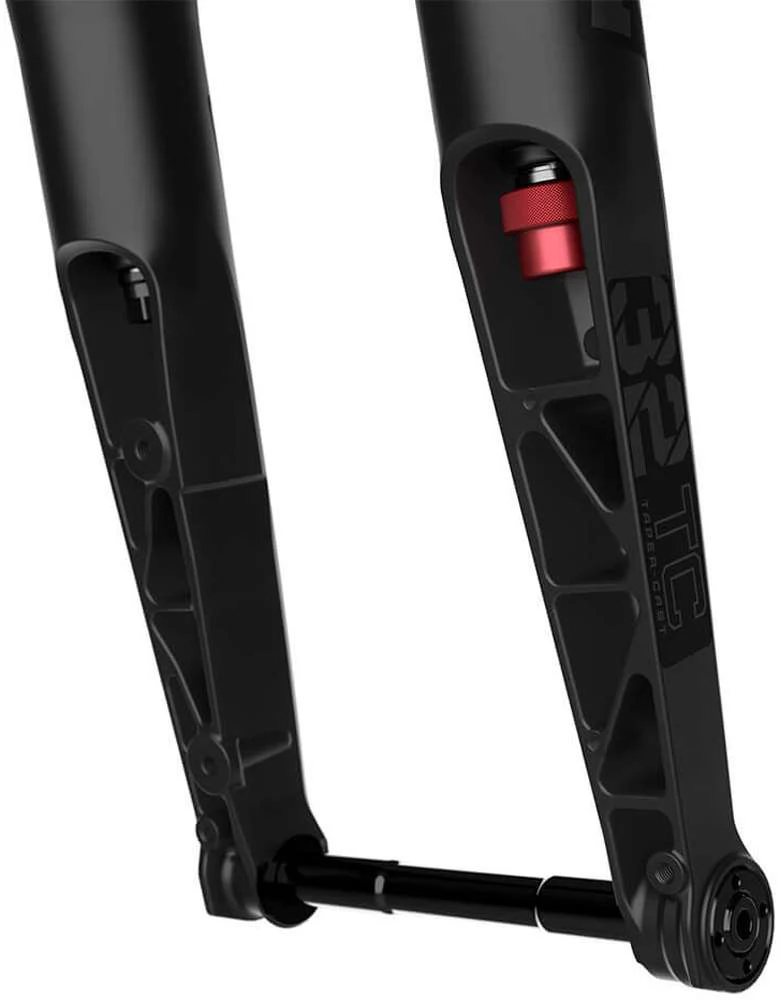

The fork features a 40 mm spring travel with a smaller air chamber, optimized for many riders without needing volume spacers, though up to four can be added if necessary. Proven lower leg bypass channels enhance oil circulation and performance throughout the travel.
A notable design element is the rearward-positioned fork bridge, which lowers the structure for material savings and contributes to the fork's sleek appearance. With a 330 mm steerer tube, it accommodates comfortable seating positions on bikes with long head tubes. Included mudguard brackets ensure reliable performance in adverse weather.
NOTE: The fork is not suitable for 650b tires as the chassis limits the width to 30 millimeters for this tire size.
SPECIFICATIONS
Technical specifications:
Area of intended use : Gravel
E-bike ready: no
Wheel size: 28"
Material fork crown/shaft: aluminium
Material standpipes: anodized aluminum
Standpipe diameter: 32 mm
Material immersion tubes: aluminium
Axle standard : 12 x 100 mm Kabolt thru axle type
Steerer tube: 1.5" to 1 1/8" tapered
Steerer tube length: 330 mm
Travel: 40mm
Spring system: Float Air, air
Adaptation of the spring characteristic: yes, via volume spacers

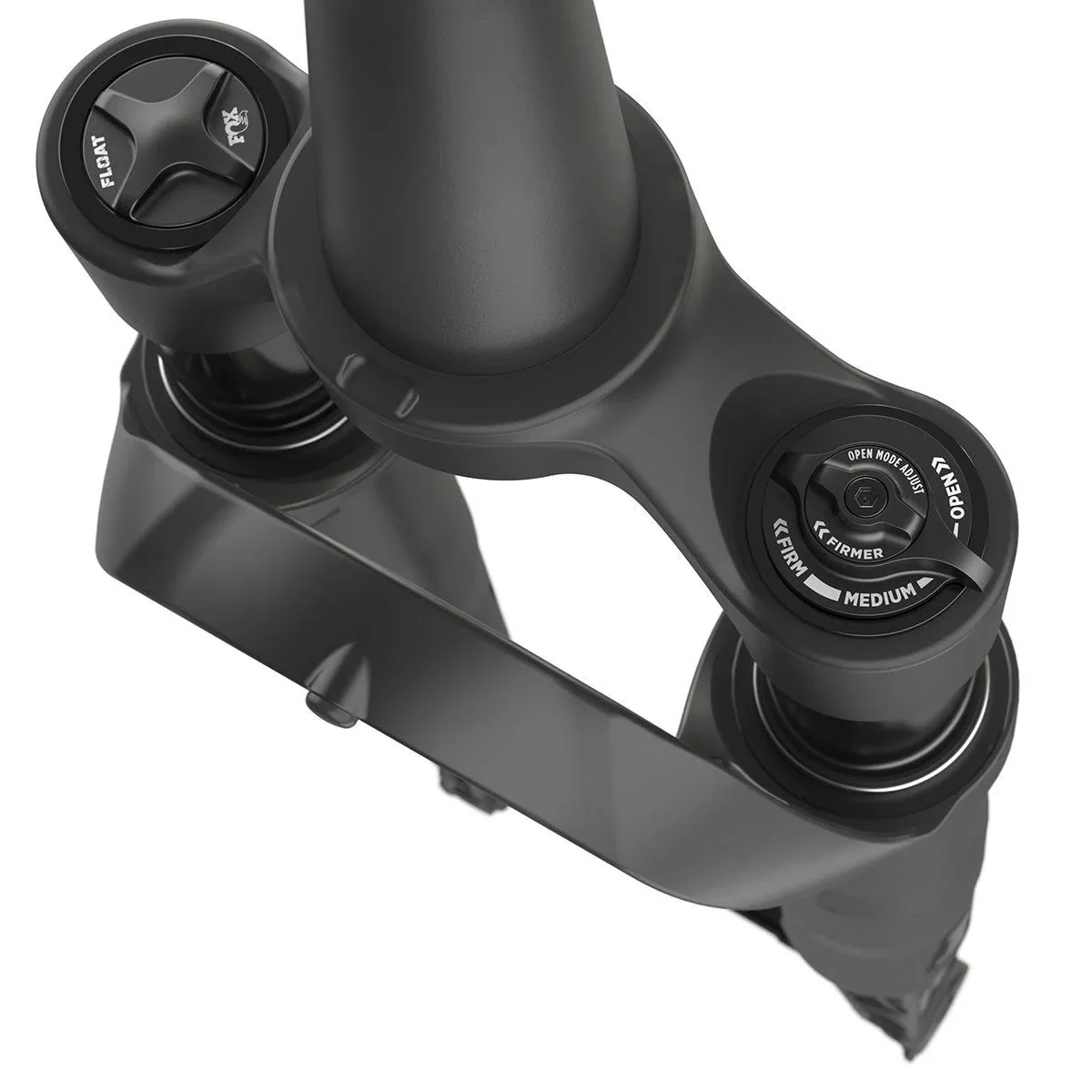

Cushioning: 3-pos FIT4, closed cartridge
Lockout: fork crown
Installation height: 435.5 mm
Brake Mount: Flat Mount
Max. permissible brake disc size: 180 mm
Tire diameter max.: 700c (not compatible with 650b wheels)
Tire width max.: 50 mm (45 mm when using fenders)
Rake: 50mm
Colour: matt black, logos - grey, standpipes - black
Weight according to the manufacturer: 1226g
Scope of delivery:
1x FOX suspension fork 2022 28" 32 TC Performance Elite Float P-SE 40 Taper-Cast 3-Pos Adjust FIT4 matte black 45 mm rake
1x FOX thru axle Kabolt
2x volume spacers
2x brackets for mounting mudguards
